PRODUCT

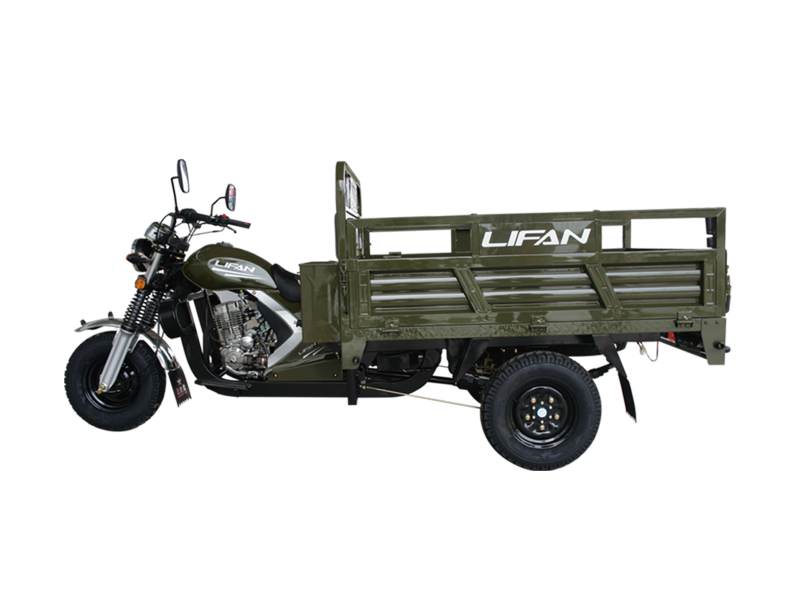

LF200ZH-C
|
SPECIFICATIONS
|
|
|
Three-Wheeler Model
|
LF150ZH-C/LF200ZH-C
|
|
Dimension (L×W×H mm)
|
3300×1310×1800
|
|
Rear Track (mm)
|
1080
|
|
Wheelbase (mm)
|
2060
|
|
Fuel Tank Capacity (L)
|
11
|
|
Tire (front/rear)
|
4.50-12/4.50-12
|
|
Brake (front/rear)
|
drum/drum
|
|
Net Weight (kg)
|
480
|
|
Max. Speed (km/h)
|
65
|
|
Carriage Dimension (mm)
|
1700×1250×480
|
|
Transmission
|
5 gears
|
|
Bore×Stroke (mm)
|
55×63/62×65
|
|
Start
|
electric/kick start
|
|
Compression Ratio
|
9.3:1/8.9:1
|
|
Engine Type
|
4-stroke, air-cooled
|
|
Displacement (mL)
|
149.6/196
|
|
Max. Power (kW@rpm)
|
7.5@7000/10.2@8000
|
|
Max. Torque (N.m@rpm)
|
11.5@5000/14.5@5000
|
|
Fuel Consumption (L/100km)
|
≤4.3
|
|
SPECIFICATIONS
|
|
|
Three-Wheeler Model
|
LF150ZH-C/LF200ZH-C
|
|
Dimension (L×W×H mm)
|
3300×1310×1800
|
|
Rear Track (mm)
|
1080
|
|
Wheelbase (mm)
|
2060
|
|
Fuel Tank Capacity (L)
|
11
|
|
Tire (front/rear)
|
4.50-12/4.50-12
|
|
Brake (front/rear)
|
drum/drum
|
|
Net Weight (kg)
|
480
|
|
Max. Speed (km/h)
|
65
|
|
Carriage Dimension (mm)
|
1700×1250×480
|
|
Transmission
|
5 gears
|
|
Bore×Stroke (mm)
|
55×63/62×65
|
|
Start
|
electric/kick start
|
|
Compression Ratio
|
9.3:1/8.9:1
|
|
Engine Type
|
4-stroke, air-cooled
|
|
Displacement (mL)
|
149.6/196
|
|
Max. Power (kW@rpm)
|
7.5@7000/10.2@8000
|
|
Max. Torque (N.m@rpm)
|
11.5@5000/14.5@5000
|
|
Fuel Consumption (L/100km)
|
≤4.3
|
