PRODUCT

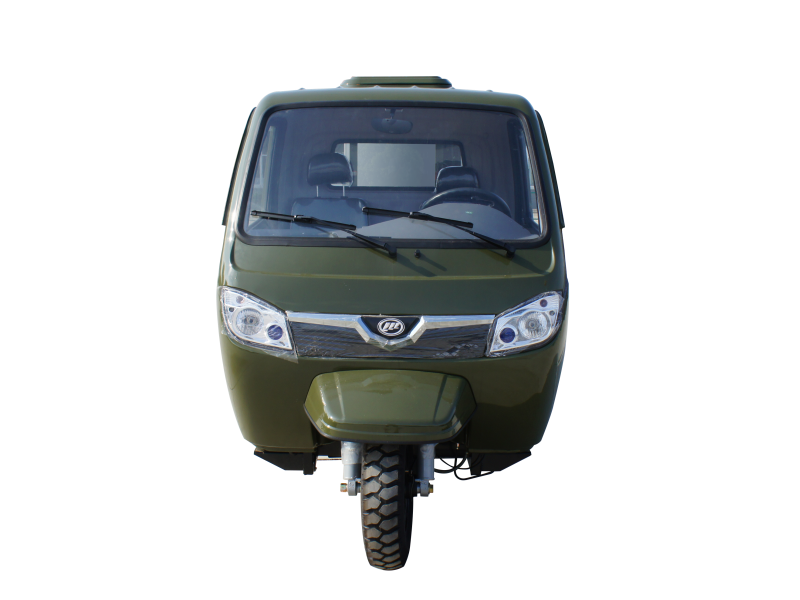

LF320ZH-3D
|
SPECIFICATIONS
|
|
|
Three-Wheeler Model
|
LF250ZH-3D/LF320ZH-3D
|
|
Dimension (L×W×H mm)
|
4340×1610×1920
|
|
Rear Track (mm)
|
1390
|
|
Wheelbase (mm)
|
3000
|
|
Fuel Tank Capacity (L)
|
23
|
|
Tire (front/rear)
|
5.00-12/5.00-12
|
|
Brake (front/rear)
|
drum/drum
|
|
Net Weight (kg)
|
780
|
|
Max. Speed (km/h)
|
65
|
|
Carriage Dimension (mm)
|
2200×1350×480
|
|
Transmission
|
5 gears
|
|
Bore×Stroke (mm)
|
70×65/76×66.2
|
|
Start
|
electric/kick start
|
|
Compression Ratio
|
9.5:1/9.0:1
|
|
Engine Type
|
4-stroke, water-cooled
|
|
Displacement (mL)
|
250.0/300.3
|
|
Max. Power (kW@rpm)
|
12.8@7000/12.5@6000
|
|
Max. Torque (N.m@rpm)
|
19.5@5500/22.3@4500
|
|
Fuel Consumption (L/100km)
|
≤4.3
|
|
