PRODUCT

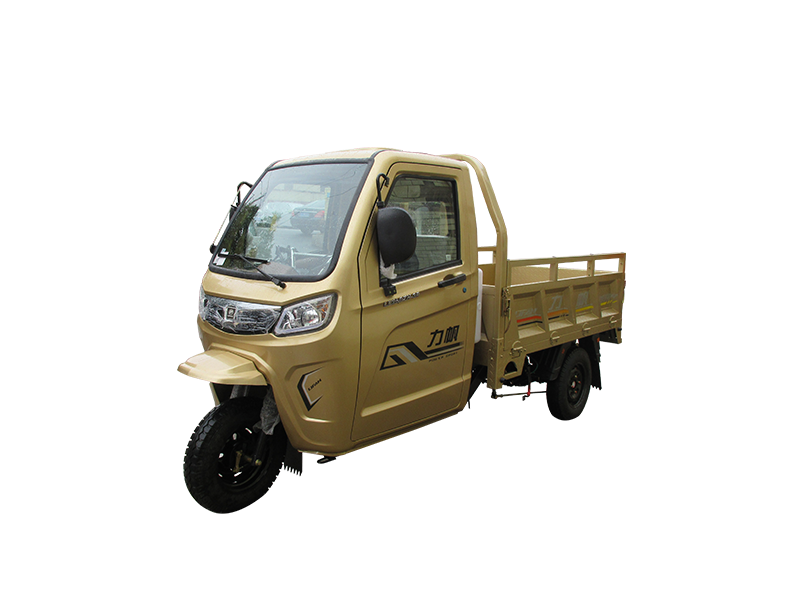

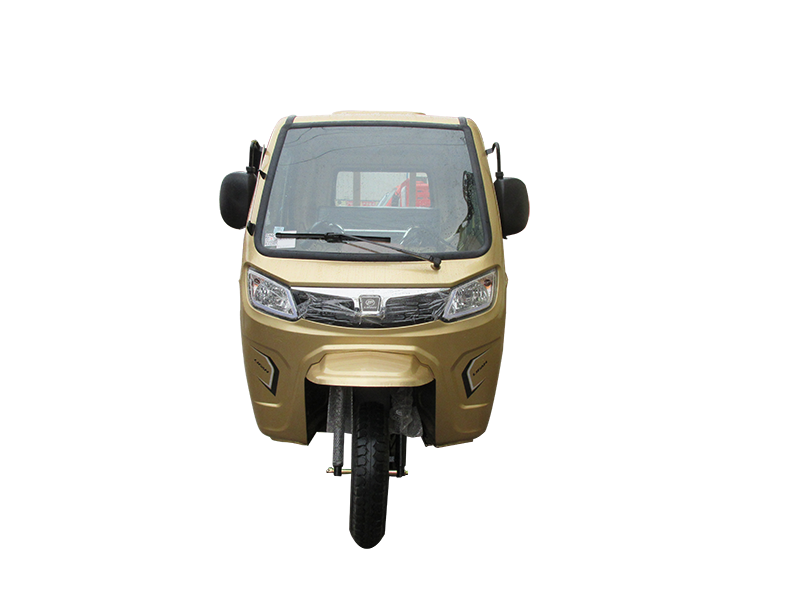

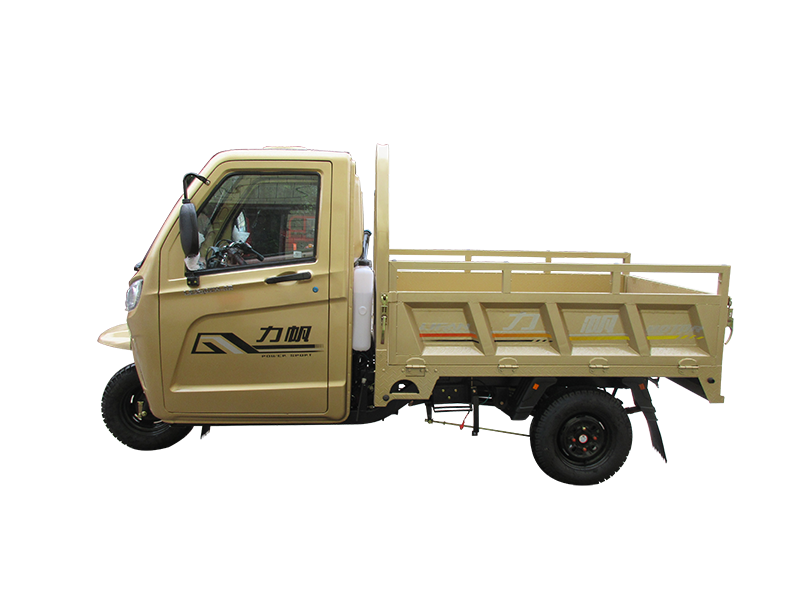

LF200ZH-3R
|
SPECIFICATIONS |
|
|
Three-Wheeler Model |
LF200ZH-3R |
|
Dimension (L×W×H mm) |
3360×1280×1770 |
|
Rear Track (mm) |
1100 |
|
Wheelbase (mm) |
2400 |
|
Fuel Tank Capacity (L) |
16 |
|
Tire (front/rear) |
4.50-12/4.50-12 |
|
Brake (front/rear) |
drum/drum |
|
Net Weight (kg) |
376 |
|
Max. Speed (km/h) |
60 |
|
Carriage Dimension (mm) |
1250×1280×1450 |
|
Transmission |
5 gears |
|
Bore×Stroke (mm) |
63.5×62.2 |
|
Start |
electric/kick start |
|
Compression Ratio |
9.0:1 |
|
Engine Type |
4-stroke, water-cooled |
|
Displacement (mL) |
197 |
|
Max. Power (kW@rpm) |
11.0@8000 |
|
Max. Torque (N.m@rpm) |
13.8@6500 |
|
Fuel Consumption (L/100km) |
≤4.3 |
|
SPECIFICATIONS |
|
|
Three-Wheeler Model |
LF200ZH-3R |
|
Dimension (L×W×H mm) |
3360×1280×1770 |
|
Rear Track (mm) |
1100 |
|
Wheelbase (mm) |
2400 |
|
Fuel Tank Capacity (L) |
16 |
|
Tire (front/rear) |
4.50-12/4.50-12 |
|
Brake (front/rear) |
drum/drum |
|
Net Weight (kg) |
376 |
|
Max. Speed (km/h) |
60 |
|
Carriage Dimension (mm) |
1250×1280×1450 |
|
Transmission |
5 gears |
|
Bore×Stroke (mm) |
63.5×62.2 |
|
Start |
electric/kick start |
|
Compression Ratio |
9.0:1 |
|
Engine Type |
4-stroke, water-cooled |
|
Displacement (mL) |
197 |
|
Max. Power (kW@rpm) |
11.0@8000 |
|
Max. Torque (N.m@rpm) |
13.8@6500 |
|
Fuel Consumption (L/100km) |
≤4.3 |
