PRODUCT

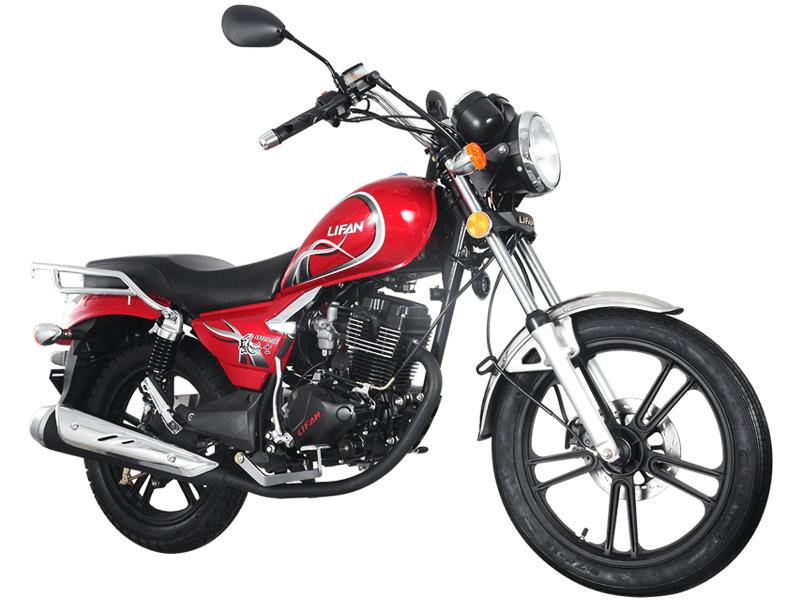

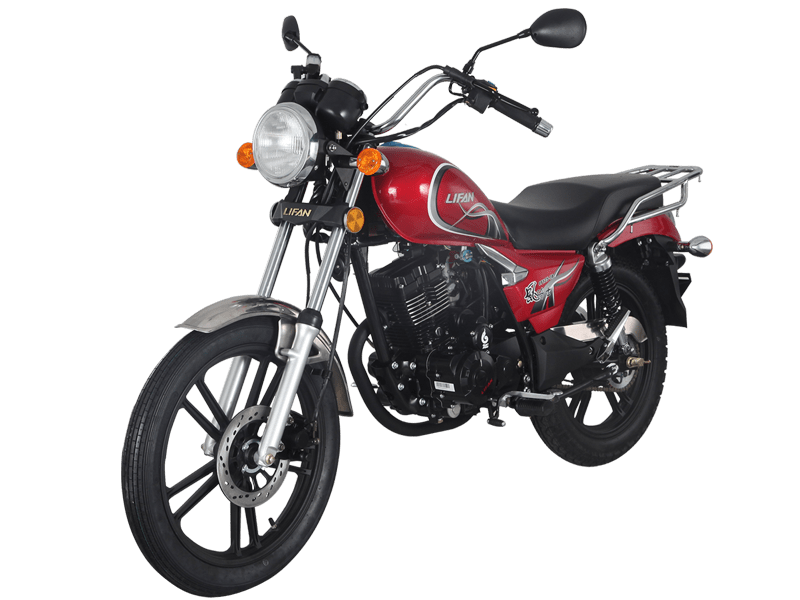

C-MAN3 (LF125-7A)
|
SPECIFICATIONS
|
|
|
Motorcycle Model
|
LF125-7A/LF150-7A
|
|
Dimension (L×W×H mm)
|
2015×910×1105
|
|
Wheelbase (mm)
|
1310
|
|
Net Weight (kg)
|
125/130
|
|
Seat Height (mm)
|
745
|
|
Fuel Tank Capacity (L)
|
12
|
|
Engine Type
|
single-cylinder, air-cooled, four-stroke
|
|
Bore×Stroke (mm)
|
56.5×49.9/62.0×52.4
|
|
Displacement (mL)
|
125/158
|
|
Compression Ratio
|
9.2:1/9.3:1
|
|
Max. Power (kW@rpm)
|
8.3@8500/8.6@8500
|
|
Max. Torque (N.m@rpm)
|
9.2@7500/10.9@6500
|
|
Start
|
electric/kick start
|
|
Transmission
|
5 gears, hand-clutched
|
|
Brake (front/rear)
|
disc/drum
|
|
Wheel
|
Al-alloy
|
|
Tire (front/rear)
|
2.75-18/3.50-16
|
|
Max. Speed (km/h)
|
90/95
|
|
Economical Fuel Consumption (L/100km)
|
≤2.1/2.2
|
|
SPECIFICATIONS
|
|
|
Motorcycle Model
|
LF125-7A/LF150-7A
|
|
Dimension (L×W×H mm)
|
2015×910×1105
|
|
Wheelbase (mm)
|
1310
|
|
Net Weight (kg)
|
125/130
|
|
Seat Height (mm)
|
745
|
|
Fuel Tank Capacity (L)
|
12
|
|
Engine Type
|
single-cylinder, air-cooled, four-stroke
|
|
Bore×Stroke (mm)
|
56.5×49.9/62.0×52.4
|
|
Displacement (mL)
|
125/158
|
|
Compression Ratio
|
9.2:1/9.3:1
|
|
Max. Power (kW@rpm)
|
8.3@8500/8.6@8500
|
|
Max. Torque (N.m@rpm)
|
9.2@7500/10.9@6500
|
|
Start
|
electric/kick start
|
|
Transmission
|
5 gears, hand-clutched
|
|
Brake (front/rear)
|
disc/drum
|
|
Wheel
|
Al-alloy
|
|
Tire (front/rear)
|
2.75-18/3.50-16
|
|
Max. Speed (km/h)
|
90/95
|
|
Economical Fuel Consumption (L/100km)
|
≤2.1/2.2
|
