PRODUCT

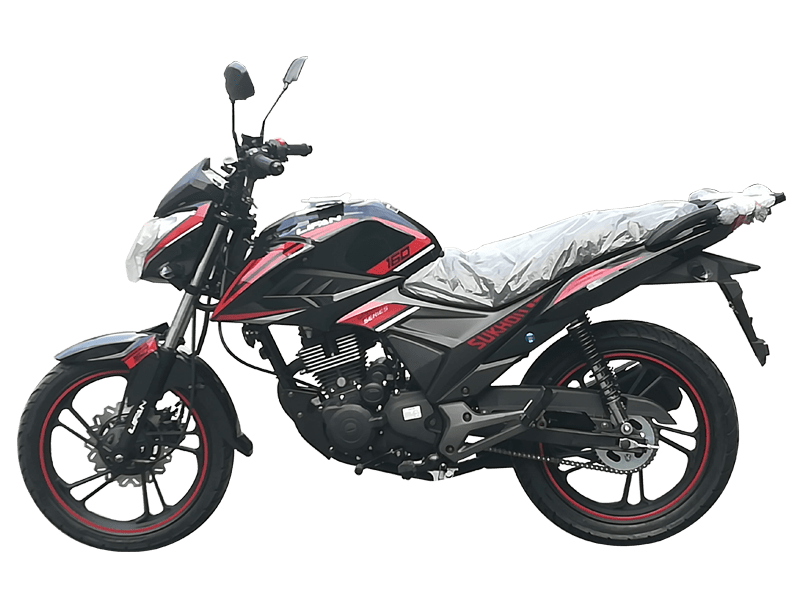

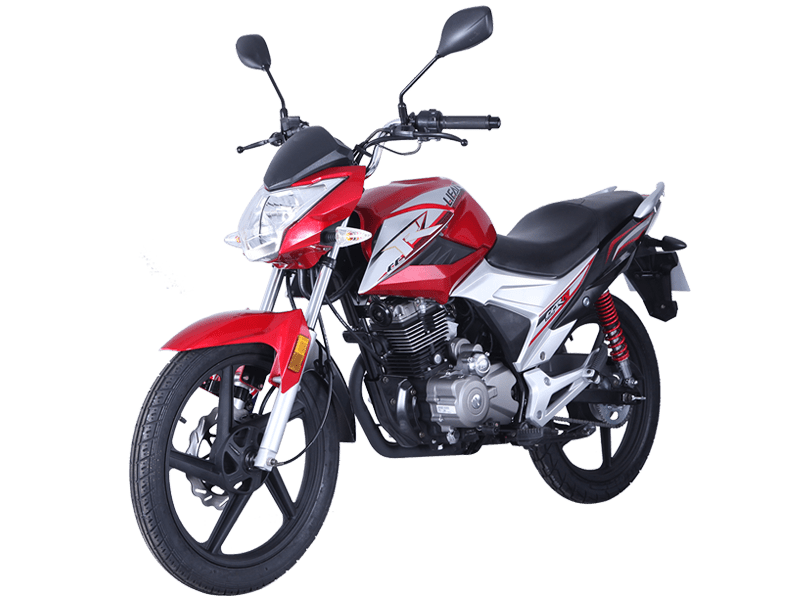

CCR150 (LF150-2E)
|
SPECIFICATIONS
|
|
|
Motorcycle Model
|
LF150-2E/LF175-2E
|
|
Dimension (L×W×H mm)
|
2020×760×1080
|
|
Wheelbase (mm)
|
1320
|
|
Net Weight (kg)
|
132
|
|
Seat Height (mm)
|
765
|
|
Fuel Tank Capacity (L)
|
13
|
|
Engine Type
|
single-cylinder, air-cooled, four-stroke
|
|
Bore×Stroke (mm)
|
62×52.4/62×57.8
|
|
Displacement (mL)
|
158/174.5
|
|
Compression Ratio
|
9.3:1
|
|
Max. Power (kW@rpm)
|
9.0@8500/10.5@8000
|
|
Max. Torque (N.m@rpm)
|
10.9@6500/13.5@6000
|
|
Start
|
electric/kick start
|
|
Transmission
|
5 gears, hand-clutched
|
|
Brake (front/rear)
|
disc/drum
|
|
Wheel
|
Al-alloy
|
|
Tire (front/rear)
|
2.75-18/3.00-18
|
|
Max. Speed (km/h)
|
98/100
|
|
Economical Fuel Consumption (L/100km)
|
≤2.3
|
|
SPECIFICATIONS
|
|
|
Motorcycle Model
|
LF150-2E/LF175-2E
|
|
Dimension (L×W×H mm)
|
2020×760×1080
|
|
Wheelbase (mm)
|
1320
|
|
Net Weight (kg)
|
132
|
|
Seat Height (mm)
|
765
|
|
Fuel Tank Capacity (L)
|
13
|
|
Engine Type
|
single-cylinder, air-cooled, four-stroke
|
|
Bore×Stroke (mm)
|
62×52.4/62×57.8
|
|
Displacement (mL)
|
158/174.5
|
|
Compression Ratio
|
9.3:1
|
|
Max. Power (kW@rpm)
|
9.0@8500/10.5@8000
|
|
Max. Torque (N.m@rpm)
|
10.9@6500/13.5@6000
|
|
Start
|
electric/kick start
|
|
Transmission
|
5 gears, hand-clutched
|
|
Brake (front/rear)
|
disc/drum
|
|
Wheel
|
Al-alloy
|
|
Tire (front/rear)
|
2.75-18/3.00-18
|
|
Max. Speed (km/h)
|
98/100
|
|
Economical Fuel Consumption (L/100km)
|
≤2.3
|
