PRODUCT

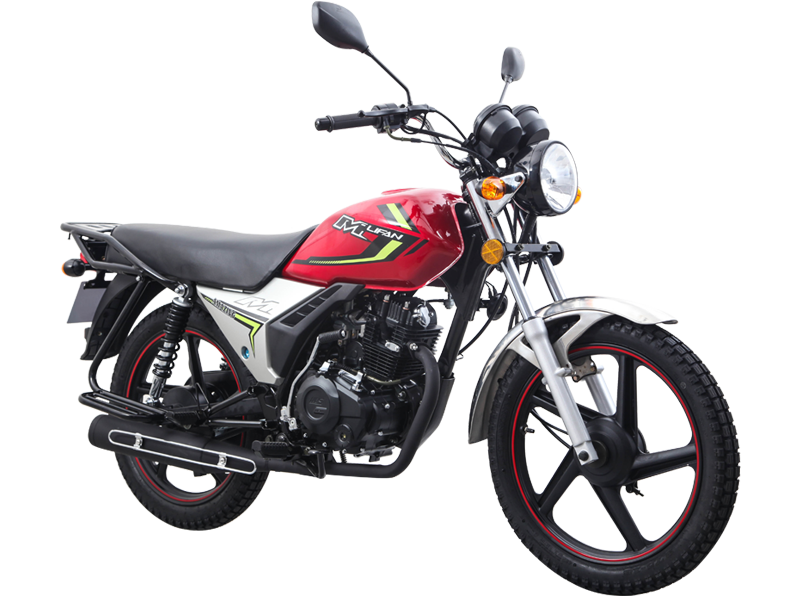

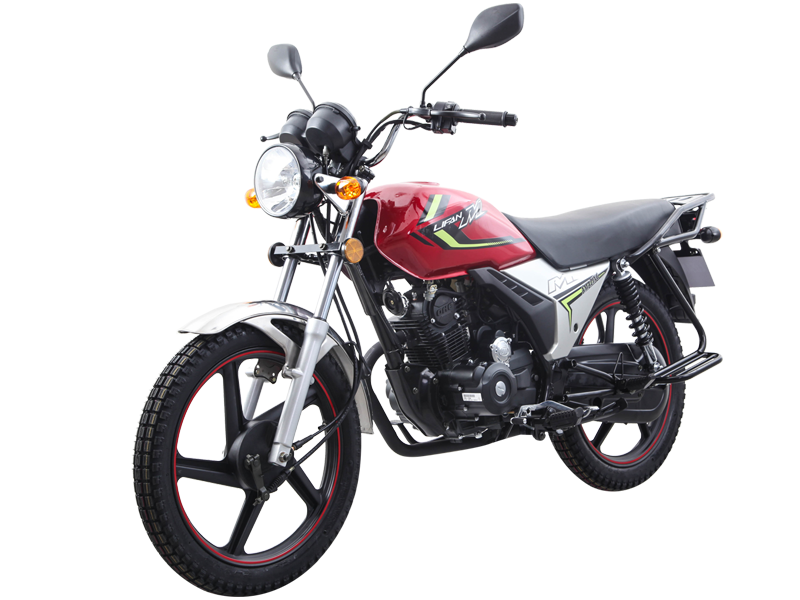

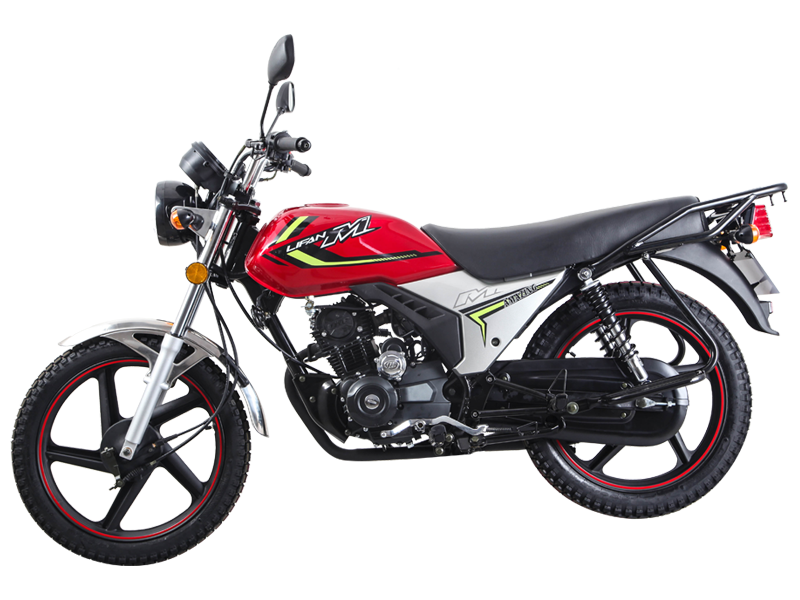

CAMEL125(LF150-2C(IV))
| SPECIFICATIONS | |
| Motorcycle Model | LF150-2C IV (NBS150/CG158) |
| Dimension (L×W×H mm) | 2100×760×1080 |
| Wheelbase (mm) | 1320 |
| Ground Clearance (mm) | 160 |
| Net Weight (kg) | 126 |
| Seat Height (mm) | 800 |
| Fuel Tank Capacity (L) | 14 |
| Engine Type | vertical single-cylinder, air-cooled, four-stroke |
| Bore×Stroke (mm) | 57.3×57.8/62.0×52.4 |
| Displacement (mL) | 149/158 |
| Compression Ratio | 9.2:1/9.3:1 |
| Max. Power (kW@rpm) | 9.2@8500/9.0@8500 |
| Max. Torque (N.m@rpm) | 11.5@6500/10.9@6500 |
| Start | electric/kick start |
| Transmission | 5-gears, hand-clutched |
| Brake (front/rear) | disc / drum or drum / drum |
| Wheel | Al-alloy or spoke |
| Tire (front/rear) | 2.75-18/3.00-18 |
| Max. Speed (km/h) | 98 |
| Economical Fuel Consumption (km/L) | ≥43.5 |
| SPECIFICATIONS | |
| Motorcycle Model | LF150-2C IV (NBS150/CG158) |
| Dimension (L×W×H mm) | 2100×760×1080 |
| Wheelbase (mm) | 1320 |
| Ground Clearance (mm) | 160 |
| Net Weight (kg) | 126 |
| Seat Height (mm) | 800 |
| Fuel Tank Capacity (L) | 14 |
| Engine Type | vertical single-cylinder, air-cooled, four-stroke |
| Bore×Stroke (mm) | 57.3×57.8/62.0×52.4 |
| Displacement (mL) | 149/158 |
| Compression Ratio | 9.2:1/9.3:1 |
| Max. Power (kW@rpm) | 9.2@8500/9.0@8500 |
| Max. Torque (N.m@rpm) | 11.5@6500/10.9@6500 |
| Start | electric/kick start |
| Transmission | 5-gears, hand-clutched |
| Brake (front/rear) | disc / drum or drum / drum |
| Wheel | Al-alloy or spoke |
| Tire (front/rear) | 2.75-18/3.00-18 |
| Max. Speed (km/h) | 98 |
| Economical Fuel Consumption (km/L) | ≥43.5 |
